Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper

Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper
Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper

Ampliación de imagen :  Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: ASTAR
Certificación: CE
Número de modelo: Astar MT800
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: bolsa de plastico
Tiempo de entrega: 5 - 8 días laborables
Condiciones de pago: T/T, Western Union, L/C, D/A, D/P, T/T, Moneygram, PayPal
Capacidad de la fuente: 100 piezas por mes
Contacto

Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper

descripción
Modelo: Pulverización electrostática digital manual estándar de prueba: Plano/Empotrado/Repintado 3 modos
Nombre: MÁQUINA DE CAPA DEL POLVO voltaje de entrada: AC220V 50Hz
Alto voltaje ajustable: Regulación continua de 0 a 100 kV Capacidad de tolva de polvo estándar: Tolva de acero inoxidable de 60 litros.
Panel de control: Perillas de voltaje con pantalla digital LCD Dimensión general: 70×51×115cm
Peso neto: 45kg Capacidad de la tolva de polvo: Tolva de acero inoxidable de 60 litros.

Astar Mt800 Electrostatic Powder Coating Machine
Product Overview
Astar MT800 Digital Electrostatic Powder Coating Machine is professional manual spraying equipment for metal workpiece powder coating. It adopts intelligent LCD digital control with 3 exclusive spraying modes to handle flat, deep groove and secondary touch-up workpieces efficiently.
Equipped with stable high voltage cascade module, the machine achieves up to 95% powder utilization rate, reduces powder waste and solves Faraday cage adsorption problems. Mobile trolley with 60L stainless steel powder hopper supports easy movement and quick color change.
Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper 0
Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper 1
Technical Specifications
Parameter Specification
Model Astar MT800
Operation Type Manual Digital Electrostatic Spraying
Input Voltage AC220V 50Hz
Test Standard 0–100kV Stepless Regulation
Mandrel Material Flat / Recess / Re-coating 3 Modes
Main Body Material 60L Stainless Steel Hopper
Net Weight 45kg
Overall Dimension 70*51*115cm
Applications
Metal hardware powder spraying factory, aluminum profile coating workshop, iron furniture & metal door spraying plant, automotive parts anti-corrosion coating workshop, metal shelf & cabinet spraying production line, small batch color testing lab, metal surface treatment processing factory, construction metal accessories spraying workshop.
Product Images

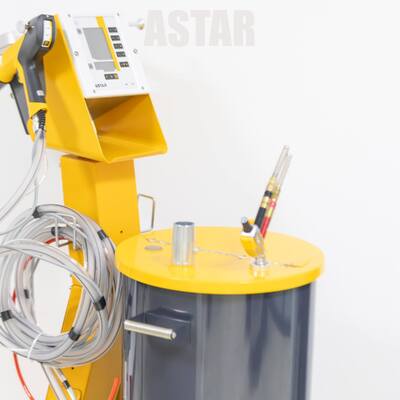

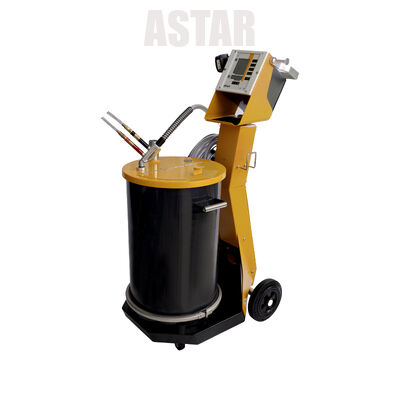

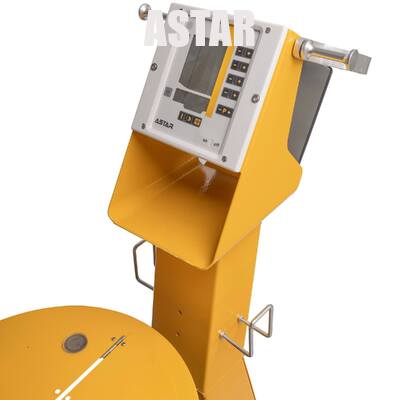

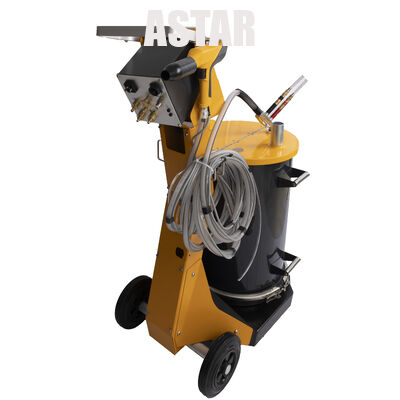

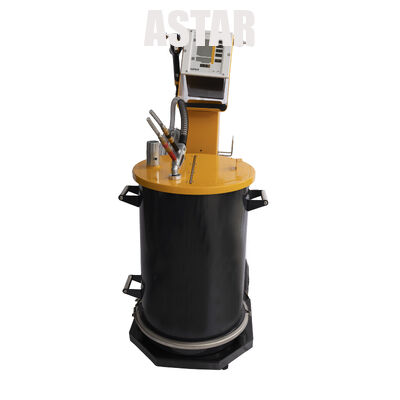

Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper 2

Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper 3

Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper 4

Astar MT800 Manual Electrostatic Powder Coating Machine with LCD Digital Display 0–100kV Stepless Regulation and 60L Stainless Steel Hopper 5

Key Features & Advantages
1. Intelligent Digital Control Panel, 3 Professional Spraying Modes
  • Large LCD digital display, real-time adjustable high voltage, current, powder output & air flow parameters
  • Built-in Flat Spraying, Recess Spraying, Re-coating three dedicated modes, one-key switching for flat panels, deep grooves, secondary touch-up spraying
  • Precise micro-pressure control system, stable electrostatic output, effectively solve Faraday cage effect for complex hollow workpieces
  • Independent voltage & airflow knobs, operators can fine-tune coating thickness freely for different epoxy, polyester, hybrid powder
2. High Electrostatic Adsorption Rate, Low Powder Waste & High Production Efficiency
  • Imported high-voltage cascade module, stable 0–100kV adjustable electrostatic output, strong powder charging capacity
  • Powder transfer efficiency up to 95%, less over-spray, greatly reduce raw material cost for mass production
  • Optimized venturi powder pump design, smooth powder conveying, no blockage, suitable for fine powder, metallic powder, matte & glossy coating powder
  • Uniform powder fog output, even coating film thickness, avoid sagging, pinhole and uneven color defects
3. Mobile Integrated Trolley Structure, Complete Matching Accessories
  • Mobile trolley with silent rolling wheels, easy to move between production stations, small floor space for small & medium spraying workshops
  • Standard 50L stainless steel powder hopper, anti-rust, easy to disassemble & clean for fast color switching
  • Full set supporting parts: electrostatic spray gun, 10/15.5mm anti-static powder hose, multiple flat/circular nozzles, electrode holders, pressure regulating valve
  • All wiring and pipelines neatly arranged, integrated storage design, no messy scattered accessories during operation
4.Safe & Stable Operation, CE & ISO Certified Industrial Grade
  • Complete anti-static and leakage protection circuit, prevent static spark, meet workshop dust explosion safety standards
  • Overvoltage, overcurrent short-circuit automatic protection, extend service life of core high voltage components
  • Whole machine passed CE, ISO9001 certification, stable continuous 24-hour operation without failure
  • Low noise air pressure system, no oil leakage, adapt long-term daily mass spraying production
5. Wide Compatibility & Low Maintenance Cost
  • Matches all mainstream manual electrostatic spray guns, compatible with epoxy, polyester, polyurethane, anti-corrosion powder coatings
  • Wear-resistant pump core and replaceable spare parts, easy local maintenance, no complicated professional repair required
  • One-year full machine warranty, core high voltage module long-term spare parts supply support
  • Applicable for small batch trial spraying, mass hardware production, workshop daily formal spraying work
Secure paper box packaging ensures safe transportation and storage of the complete testing set.
Adhesion tester packaging - secure paper box
Adhesion tester packaging - internal arrangement
Adhesion tester packaging - complete set
Manufacturer Information
Astar Machinery Co., Ltd. specializes in electrostatic spraying equipment including electrostatic dust elimination systems, flocking machines, powder and liquid spray machines, high voltage modules, control cabinets, and complete coating systems.
One-stop Service Provider
Cangzhou Astar Machinery Co., Ltd. has over 20 years of experience in the electrostatic powder coating field, providing full-chain supply chain services including production line design, processing, installation, commissioning, maintenance, and equipment supply.
Astar Machinery Company facility and operations
Company Departments
  • Technical Department: 7-member core technical team with 20+ years industry experience, providing 3D flowcharts and animation simulations
  • Foreign Trade Department: 5-member professional team serving international markets worldwide
  • Production Department: 5-member lean team focused on coating equipment installation and spare parts production
  • After-sales Service Department: 2-member dedicated team providing full-process tracking and efficient problem resolution
